Sales Articles & Subassemblies¶

This page lists all EverTag Station product articles for reference. Sales articles are complete products shipped to customers. Each sales article is assembled from subassemblies, which in turn contain the PCB assemblies documented in the PCB Articles section.

EU Market¶

Article	Name	Subassembly	Features	Power
232001	EverTag Station EU	232500	Standard anchor, NFC config	EU
232002	EverTag Station bat EU	232501	Battery backup	EU
232003	EverTag Station WIFI GW EU	232502	WiFi gateway	EU
232004	EverTag Station bat WIFI GW EU	232503	Battery backup + WiFi gateway	EU

US Market (Intrex)¶

Article	Name	Subassembly	Features	Power
232010	EverTag Station Intrex US	232500	Standard anchor, NFC config	US
232011	EverTag Station bat Intrex US	232501	Battery backup	US
232012	EverTag Station WIFI GW Intrex US	232502	WiFi gateway	US
232013	EverTag Station bat WIFI GW Intrex US	232503	Battery backup + WiFi gateway	US

EU vs US

The EU and US sales articles use the same connectivity module subassemblies. The difference is the Power Base Module (EU or US plug) and regional compliance (CE vs FCC/Intrex).

Subassemblies¶

Connectivity Module Subassemblies¶

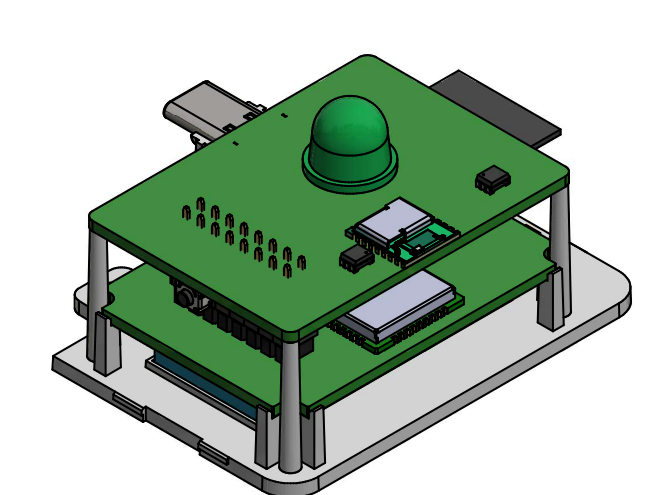

Connectivity Module assembly -- upper PCB and lower PCB stacked

Article	Name	PCB(s)	Description
232500	EverTag Connectivity Module	232200	Base module: nRF54 (PAN611) + NFC
232501	EverTag Connectivity Module bat	232201	Base + LiFePO4 battery backup
232502	EverTag Connectivity Module wifi	232202	Base + ESP32-C5 WiFi gateway
232503	EverTag Connectivity Module bat, wifi	232203	Base + battery + WiFi
232504	EverTag Connectivity Module bat, wifi, PIR, LTE EU	232204 + 232210	Full platform + LTE EU extension
232505	EverTag Connectivity Module bat, wifi, PIR, LTE US	232204 + 232211	Full platform + LTE US extension

Enclosure & Power¶

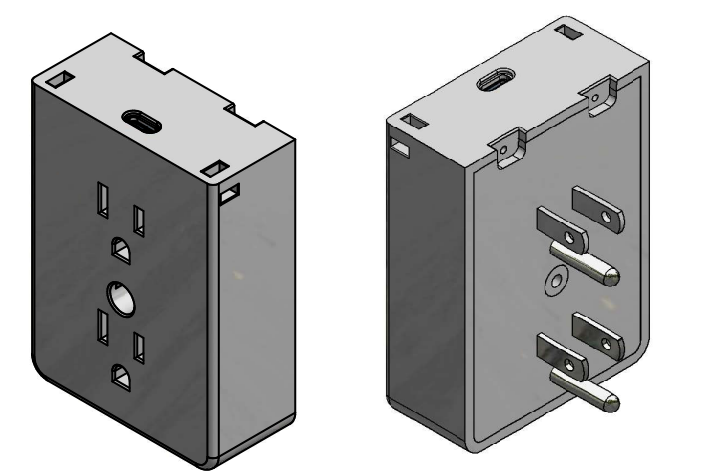

Power Base Module US variant -- front (pass-through outlet) and back (US plug)

Article	Name	Description
232506	EverTag Connectivity Module - Plastic Enclosure white matte	PC+ABS matte enclosure, UL94 V0. Shared across all variants. Prepared PIR window region and LTE antenna routing path.
232507	EverTag Power module US	Purchased/custom power base. Isolated AC-DC flyback converter, 5V / 2A Class 2 output. US plug variant.

Power Base Module

The Power Base Module (232507 and EU equivalent) is a purchased part, custom-designed for CargoBeacon. It provides isolated 5V / 2A Class 2 output from AC mains. Detailed design documentation is maintained separately by the power module supplier.

Additional Parts¶

Article	Name	Description
232250	Battery EverTag Connectivity Module	EEMB LP472040F-PCM-LD LiFePO4, JST-PHR-02 connector, 10cm cable
232251	LTE Antenna EverTag Connectivity Module	On-board SMD chip antenna (Quectel YC0001CA) -- soldered to extension PCB during SMD reflow. FPC fallback (Quectel YPCA004AA via U.FL) available if needed.

Product Structure¶

graph TD
    subgraph sales_eu [Sales Articles - EU]
        S232001["232001 Station EU"]
        S232002["232002 Station bat EU"]
        S232003["232003 WIFI GW EU"]
        S232004["232004 bat WIFI GW EU"]
    end

    subgraph sales_us [Sales Articles - US]
        S232010["232010 Station US"]
        S232011["232011 Station bat US"]
        S232012["232012 WIFI GW US"]
        S232013["232013 bat WIFI GW US"]
    end

    subgraph subassy [Subassemblies]
        SA500["232500 Conn Module"]
        SA501["232501 Conn Module bat"]
        SA502["232502 Conn Module wifi"]
        SA503["232503 Conn Module bat+wifi"]
        SA506["232506 Enclosure"]
        SA507["232507 Power Module US"]
    end

    subgraph pcbs [PCB Articles]
        P232200["232200 Base Std"]
        P232201["232201 Base Bat"]
        P232202["232202 Base WIFI"]
        P232203["232203 Base Bat+WIFI"]
    end

    S232001 --> SA500
    S232002 --> SA501
    S232003 --> SA502
    S232004 --> SA503

    S232010 --> SA500
    S232011 --> SA501
    S232012 --> SA502
    S232013 --> SA503

    SA500 --> P232200
    SA501 --> P232201
    SA502 --> P232202
    SA503 --> P232203

    S232001 --> SA506
    S232010 --> SA506
    S232010 --> SA507
